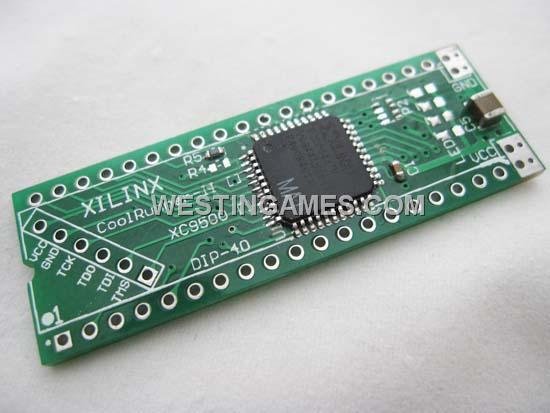

Xilinx XC2C64A CPLD Core Module CoolRunner2 mini Board as same as Digilent C-Mod Cmod for XBOX360 Phat & Slim

Features:
- Compatible with the free Xilinx WebPack tools
- Design can easily be ported and using different CPLD device families
- Once programmed, CPLD designs are non-volatile
- All available user I/O signals are brought out to DIP pins
- Requires a single 3.3V supply voltage (voltage regulation on the boards where required)
- Adequate bypass capacitance on all CPLD voltage supply pins

XC2C64A:
a). Xilinx core module has a standard DIP40 package, 40 pin, 2.54mm pin spacing, column spacing of 15.4mm.
a). Module Board Size: 6.3CM * 1.8CM, 20 and 21 feet respectively, VCC and GND.
a). This module can be easily applied and combined wit your own system desgins like the target board.
a). LP2985 1.8V LDO, . IO are all leads, including crystal when not in use, you can also change the jumper.
a). Resistance leads to IO, , exclusion can also be removed completely from the methods and systems.
a). Input Voltage:2.5 ~3.3V voltage, core voltage of 1.8V is generated by the onboard LDO.
a). Due to the design considerations, the circuit board itself can support the maximum XC2C64A the CPLD. Change the jumper resistance and support after removal of part of the original XC9536(XL) and XC9572 (XL).
a). With 6PIN JTAG interface.

Packing Include:
Xilinx CPLD core module XC2C64A   X    1
40-Pin Male Header * 1
