Lead Time:within 3 working days
Without brand logo, Neutral
Made in china

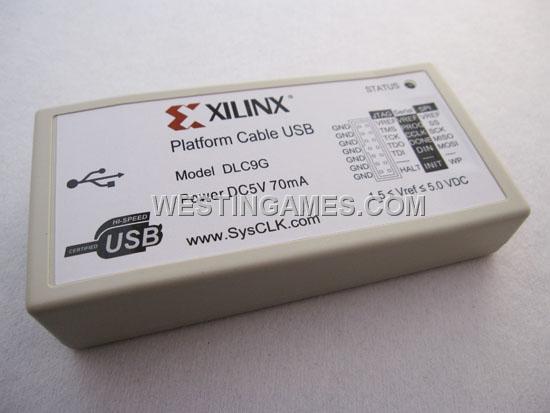

Xilinx Platform Cable USB CPLD/FPGA Download Cable Support JTAG,Slave Serial,SPI
Product information:
Description:
Support level range 1.5V-5.5V
Sent 14-pin (2.0mm), 10-pin (2.54mm), 6-pin (2.54mm) adapter cable!
Xilinx Platform Cable USB Xilinx USB download cable:
Platform Cable USB features fully compatible
XILINX factory is fully compatible with the Platform Cable USB I, seamless support for ISE (including the latest 12.1), Chipscope, EDK and other software. All of downloading firmware version is 10.1, down version of the software supports a variety of low (at least ISE6.3.03 above, the proposed 7.1 above), the firmware can be automatically updated as the original lines.
Based on the original circuit structure of the CY7C68013A + XC2C256CPLD
Support for Windows and Linux systems
Automatically detect and adapt to target I / O voltage
Support the use of 5V (TTL), 3.3V (LVCMOS), 2.5V, 1.8V 5V interface, the device level
LED status indication
SPI interfaces can be programmed flash PROM device
Features:
- For Xilinx CPLD / FPGA chips download debugging.
- To support JTAG, Slave Serial, SPI download mode, you can configure all Xilinx devices.
- With the Xilinx Platform USB Cable is fully compatible.
- The target device to download the optional clock up to 24MHz.
- Support iMPACT and ChipScope.
- Firmware can be updated automatically.
Packing list:
Download cable body (white) * 1
10PIN 2.54mm Cable * 1
14PIN 2.0mm cable *1
6PIN 2.54mm cable *1
High-quality USB-B type connector *1
Item:
1* Xilinx Platform Cable USB CPLD/FPGA Download Cable Support JTAG,Slave Serial,SPI
