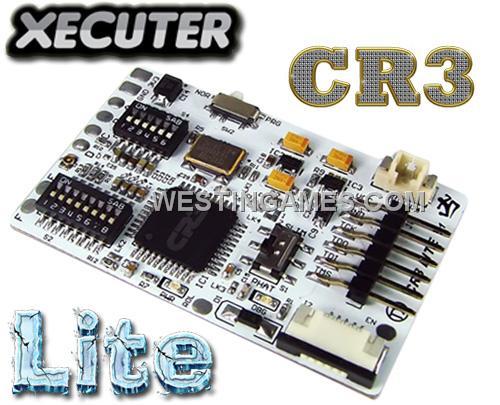

Original Xecuter CR3 Coolrunner V3 Lite PCB New CPU RST Connector for XBOX360

Features:
- Brand new design from the all new CR3 Range !
- Next-Gen RGH Circuit – Embedded All Current Fixes & Tweaks
- Quality Assured – No Cheap Chinese Knocks-Offs
- New RGH1 PLL_BYPASS Cleaner Switches (680pF, 150pF, 100nF, 68nF, 47nF Caps)
- New RGH1 & RGH2 CPU_RESET Cleaner Switches (1k, 2k, 3.3k Resistors and 470pF, 560pF 680pF Caps)
- New Corona Support – High Quality Branded 48.000Mhz Crystal (No cheap quality knock offs – gives higher performance)
- New UF.L / UMCC Connector for CPU_RESET (Includes Ground – Plug In Adapter No Soldering to the CR3 Lite required)
- New 50 Ohm Micro Double Shielded & Grounded CPU_RESET Cable (Only 1.53mm and up to 6Ghz passband)
- New Built In ROL Option (Show Debug LED On Front Panel Ring Of Light)
- Built-in Ribbon Cable Connector For DemoN (Includes CR_EN and XSVF Programming – no soldering or wires)
- Enable/Disable C15 Jumper
- Enable/Disable 10 Ohm Jumper
- Unique design – do not confuse with other brands that have copied the public schematics
- Optimized timing for each motherboard version
- Easy programming via JTAG
- JTAG CK3 Power Plug Included for LPT (JP4)
- Power LED
- Reset Cycle Debug LED
- Easy Install (Includes All Wires)
- Works perfectly with the world famous NANDX, J-R Programmer & DemoN
- QSB Add-Ons Available

Item:
1* Original Xecuter CR3 Coolrunner V3 Lite PCB New CPU RST Connector for XBOX360
