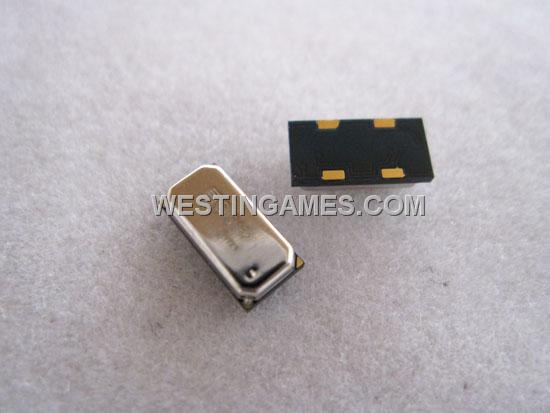

Murata ENC-03R Angular Rate Sensors PS3 Slim Gyroscope Sensor Original Part

Description:
Murata ENC-03R is an angular rate sensor that uses the phenomenon of Coriolis force, which is generated when a rotational angular rate is applied to the vibrator.

Murata's original, small ceramic bimorph vibrator and simple Cap-Base structure realize their ultra-small size, under 0.1cc. Their small shape and light weight increase flexibility of installment and help to downsize your equipment.

This surface mountable device can, be mounted by an automatic surface mounter.

Features:
- Murata ENC-03R Angular Rate Sensors PS3 Slim Gyroscope Sensor
- The Murata ENC-03R gyro is a single axis gyro, measuring left-right tilt in the case of the sixaxis
- Ultra-small and ultra-lightweight
- Quick response
- Low driving voltage, low current consumption
- Lead type : SMD
- Reflow soldering (standard peak temp. 250°C)
- Manufacturer : Murata
- Part Number : ENC-03R

Applications:
One sensor detects rotation on one axis. If two axes are to be detected in the same equipment, two different types of sensors (EMC-03RC and EMC-03RD) should be used.
To reduce the effect of temperature drift (due to change in ambient temperature), a high-pass filter must be connected to sensor output to eliminate the DC component.
To suppress the output noise component at around 30-33kHz (resonant frequency of sensor element), a low-pass filter that has a higher cut-off frequency than the required response frequency must be connected to the  sensor output.
PlayStation Sixaxis wireless controller
PS3 Slim console

Item:
1* Murata ENC-03R Angular Rate Sensors PS3 Slim Gyroscope Sensor Original Part
