Description:

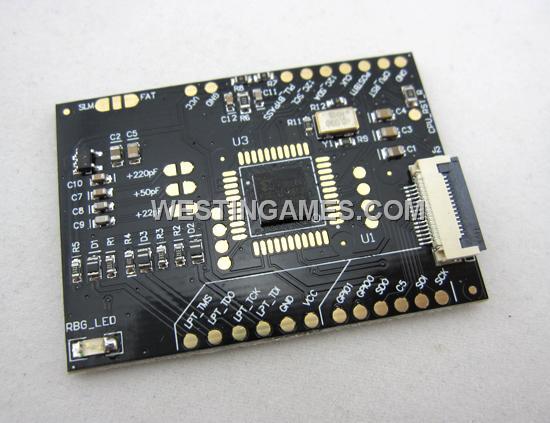

SQUIRT 1.2 BGA BLACK NEW VERSION WITH RGH CORONA !
Already flash with 9.6A Programmer!
The changes from V1:
1- LED STATUS on board
2- Added 4 extra expansion pads for future uses (corona? )
3- GND & VCC pads now more easy to connect
4- 10KOhm resistor for DUAL NAND PULLUP integrated
5- Oscillator 48Mhz, no more CLK needed and READY FOR CORONA (only hardware)
6- Added 1Ohm resistor on CPU_RST for a more faster GLITCH on SLIM
Full integrated for DUAL NAND with "SQUIRT DUAL NAND 16 MBYTE PCB"
The SQUIRT 360 COOLRUNNER (only mainboard) specifications:
- Main IC "7VQG44C PLD COOLRUNNER XILINX" compatible with all GLITCH sources
- On board capacitators: 220pF / 270pF / 292pF with easy jumpers
- LPT circuit on board, just connect LPT port and program, no need extra tools
- JTAG Xilinx port on the back for an easy update with any JTAG programmer
- SPI NAND pads connected to 40 cm FCC 15 PIN cable provided
- JTAG Xilinx port connected to 40 cm FCC 15 PIN cable provided
- 4 pads I/O connected to xilinx for future uses
- Plug and play JTAG & NAND programming with optional SQUIRT SLAVE PROGRAMMER
Note:
Made by Third-party.
Item:
1* Desinger'S Squirt BGA 1.2 RGH Corona Cool Runner for XBOX360 9.6A Console
